Summary

From the Kali attacker VM at 192.168.100.10, a full nmap service version and OS detection scan was run against the Metasploitable2 target at 192.168.100.20 on an isolated KVM homelab network. The scan completed in roughly half a minute and identified 23 open TCP ports exposing a wide attack surface of outdated, misconfigured, and intentionally vulnerable services.

Multiple remote access services exposed, including FTP, SSH, Telnet, rsh/rlogin, VNC, and X11.
Legacy application protocols and weak cryptography such as SSLv2 on SMTP and ancient OpenSSH.
Directly exposed databases (MySQL on 3306 and PostgreSQL on 5432) with no apparent network firewalling.
Dangerous services like a root bindshell on 1524/tcp and Java RMI on 1099/tcp running without authentication.

Attack Technique Used

The attack technique here is classic network reconnaissance using nmap with service version detection (-sV), default script scanning (-sC), and OS fingerprinting (-O). This is the first phase of nearly every penetration test: systematically mapping reachable ports, identifying running services and versions, and inferring the underlying operating system in order to prioritize exploitation paths.

Steps to Reproduce

Terminal: Kali SSH (ssh owokali@192.168.100.10)

sudo nmap -sV -sC -O 192.168.100.20 -oN scan_results.txt
cat scan_results.txt

Complete findings from scan:

Port 21/tcp: vsftpd 2.3.4 — anonymous FTP login allowed (FTP code 230), plaintext data connections, CVE-2011-2523 backdoor present.
Port 22/tcp: OpenSSH 4.7p1 Debian 8ubuntu1 — very old SSH daemon from 2008, only supports deprecated key algorithms.
Port 23/tcp: Linux telnetd — unencrypted remote access, all credentials and data sent in plaintext.
Port 25/tcp: Postfix smtpd — SSLv2 supported (broken cryptography, DROWN-vulnerable), certificate expired April 2010.
Port 53/tcp: ISC BIND 9.4.2 — outdated DNS server.
Port 80/tcp: Apache httpd 2.2.8 — legacy web server with multiple known CVEs.
Port 111/tcp: rpcbind — exposes NFS-related RPC services.
Ports 139/tcp and 445/tcp: Samba 3.0.20 — SMB signing disabled, enabling relay-style attacks.
Port 512/tcp: netkit-rsh rexecd — legacy remote execution service, no encryption.
Port 513/tcp: rlogin — unencrypted remote login.
Port 514/tcp: Netkit rshd — remote shell with no authentication or encryption.
Port 1099/tcp: Java RMI GNU Classpath grmiregistry — unauthenticated Java RMI registry, later used for remote code execution.
Port 1524/tcp: Metasploitable bindshell — preconfigured, unauthenticated root shell listener.
Port 2049/tcp: NFS v2–v4 — network file system exposed directly.
Port 2121/tcp: ProFTPD 1.3.1 — second FTP server instance.
Port 3306/tcp: MySQL 5.0.51a — database exposed to the network with no firewall controls.
Port 5432/tcp: PostgreSQL 8.3.0 — another database exposed directly to the network.
Port 5900/tcp: VNC protocol 3.3 — remote desktop protocol exposed.
Port 6000/tcp: X11 — display server exposed.
Port 6667/tcp: UnrealIRCd — IRC server that is also known to ship with a backdoor in some versions.
Port 8009/tcp: Apache JServ AJP — Java application server connector.
Port 8180/tcp: Apache Tomcat 5.5 — Java web application server.
OS detected: Linux kernel 2.6.9–2.6.33, roughly 2008-era; SMB security: message signing disabled (dangerous but default for this lab).

Detection (Wazuh)

Network scanning generates a large volume of short-lived connection attempts across many ports in a very small time window. In a monitored environment, Wazuh can flag this behavior: rule 5712 (or equivalent) triggers on repeated connection attempts and clear port-scanning patterns. In this lab the Kali host at 192.168.100.10 connected to every port on 192.168.100.20 within approximately 34 seconds, which is a textbook nmap scan signature that would also be visible to a network IDS such as Snort or Suricata.

Remediation

Disable or remove all unused services — the initial attack surface was 23 open ports; hardened internet-facing systems should typically expose only a small handful of required services.
Place databases (MySQL on 3306 and PostgreSQL on 5432) behind network firewalls or on internal-only VLANs; databases should never be directly reachable from untrusted networks.
Replace Telnet, rlogin, and rsh with SSH everywhere to eliminate plaintext remote-access protocols.
Apply current security patches to the operating system and all services; the 2.6.x kernel and software versions from 2008 have hundreds of publicly documented vulnerabilities.
Implement network segmentation so critical assets (databases, domain controllers, SIEM infrastructure) reside on separate VLANs from exposed services.
Disable anonymous FTP access and review all FTP usage; prefer SFTP or other encrypted file transfer mechanisms.
Retire SSLv2 and other obsolete cryptographic protocols; enforce TLS 1.2+ with modern cipher suites.

MITRE ATT&CK Mapping

TA0043 Reconnaissance, T1046 Network Service Discovery, T1595 Active Scanning.

Screenshots with captions

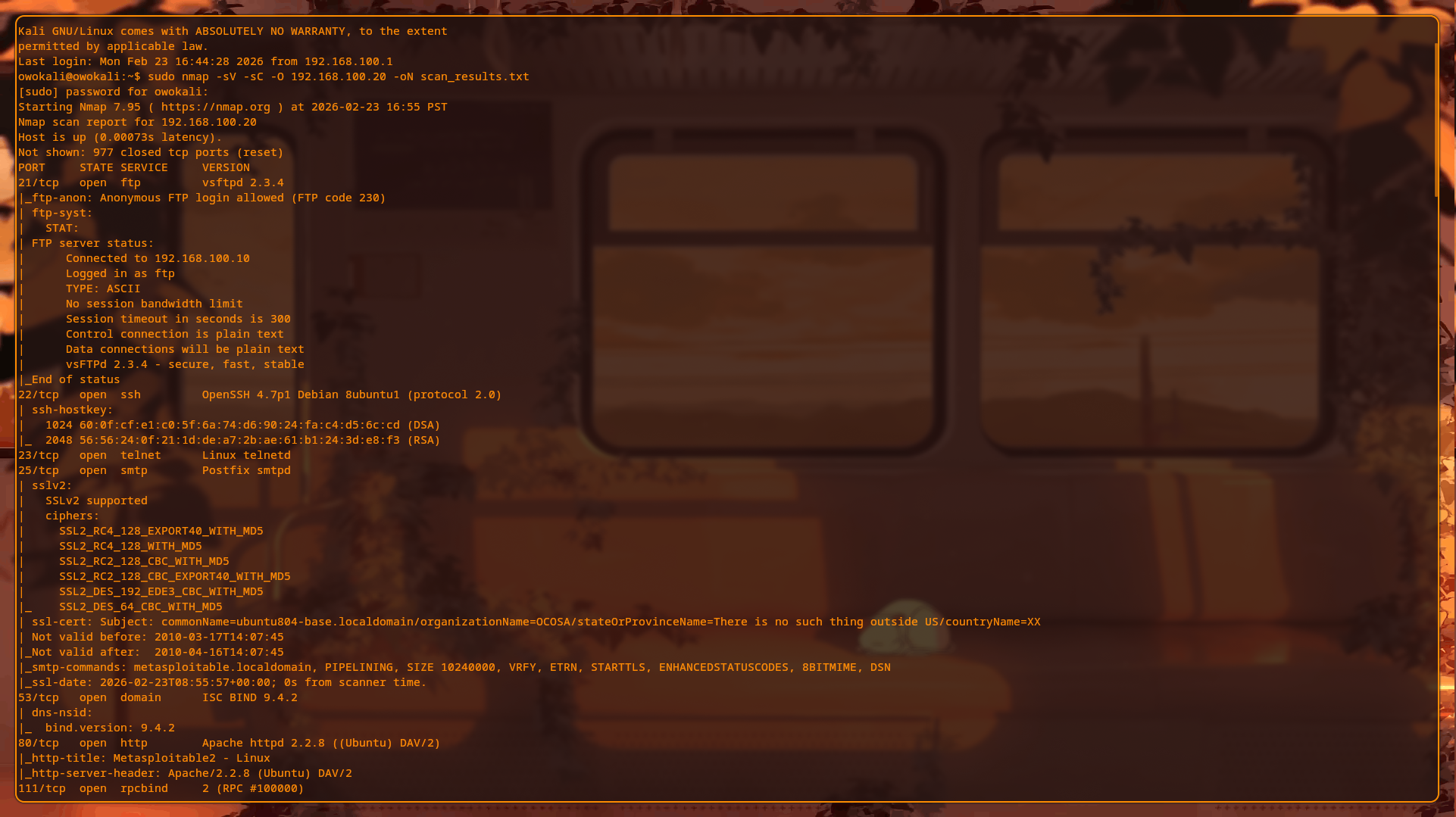

Full nmap scan output showing 23 open ports on Metasploitable2.

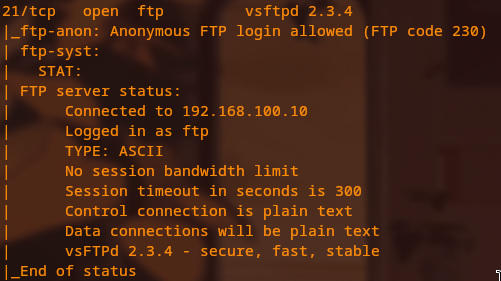

nmap service detection on port 21 showing vsftpd 2.3.4 with anonymous FTP login allowed — Port 21 vsftpd 2.3.4 with anonymous FTP login allowed.

nmap output on port 23 showing Linux telnetd running an unencrypted remote access service — Port 23 Telnet — unencrypted remote access protocol.

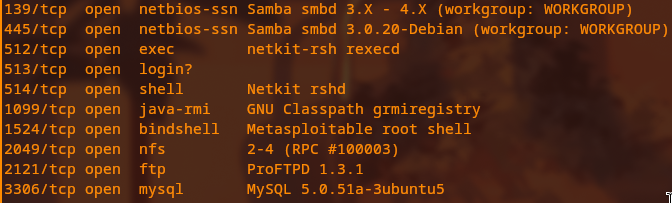

nmap output for ports 1099 and 1524 showing Java RMI registry and Metasploitable root bindshell — Port 1099 Java RMI and Port 1524 open root bindshell.

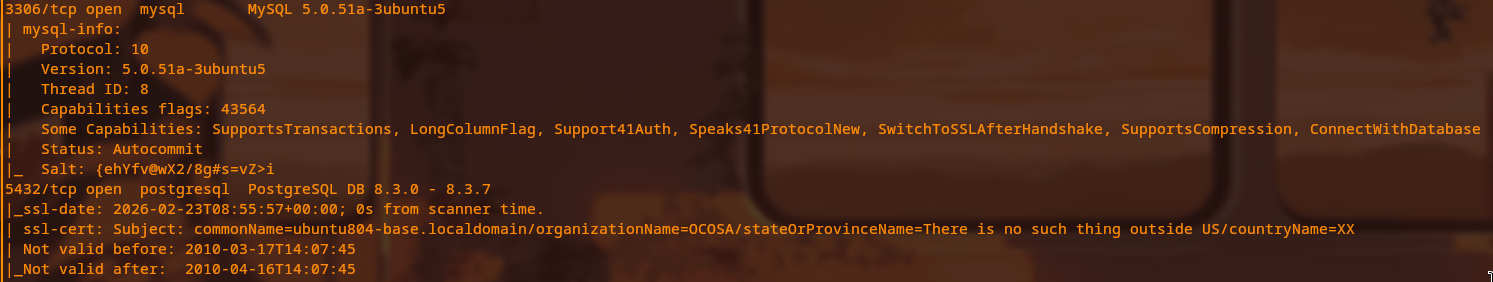

nmap output for ports 3306 and 5432 showing MySQL and PostgreSQL databases exposed to the network — Ports 3306 MySQL and 5432 PostgreSQL exposed directly to network.
